Altura Diamond Traction Lift

Altura Diamond Traction
Altura Diamond Traction
Altura Diamond Traction

Altura Diamond Traction Lift

Luxury Range

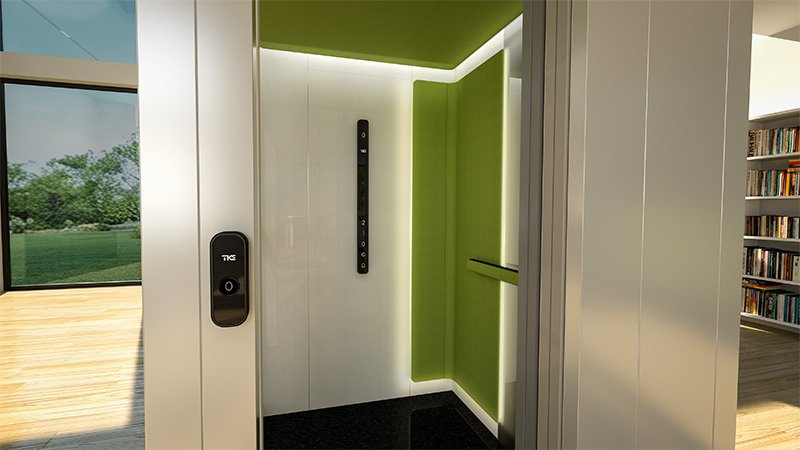

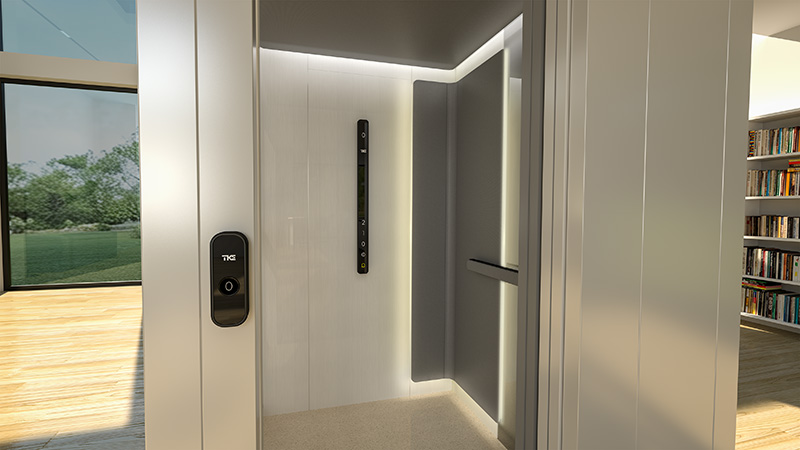

The Altura Diamond Traction home lift is the epitome of luxury, designed to offer the very best in comfort and elegant style with customisation options to suit any private or public area interior. Driven by traction power, the Altura Diamond lift operates on a motor and cogbelt, gliding between floors effortlessly and providing a smooth and quiet ride.

Available for installation in a masonry shaft or within its own metal structure / glass frame, the Altura Diamond traction lift is a flexible, adaptable and fully customisable home lift accessibility solution that will add a touch of class to your property. Luxurious performance, comfortable ride quality and stunning designs make for a unique traction home elevator you can be proud of.

Make an Enquiry Today

Configure Your Altura Lift

Reviews

"We had a great experience with Matt & Jeff, they were always free to answer questions and understood our time frame. We wanted the lift installed as quick as possible and thats what we got, it was well organised and installed with great care and quality. We are very pleased."

Mr & Mrs James
3rd February 2020

"Morgan Ellis is an excellent company to deal with. Top quality workmanship and fantastic attention to detail. Highly recommended."

Jay Hernandes
6th February 2021

"It is a joy to work with the whole Morgan Ellis team. They show outstanding dedication, professionalism and are always willing to help. Their product knowledge and experience is second to non and provide a range of home lifts that will suit every situation. If its a homelift you require, Morgan Ellis are the ones to call."

Alex Austin
27th August 2020

"I had the Altura Diamond fitted and it is perfect.The lift is such a luxury product. I couldnt recommend Morgan Ellis enough! A kind and helpful team who responded quickly to any questions I had."

Julie Sween
8th March 2021

PDF Brochures

Tech & Safety

TECHNICAL COMPLIANCE

The Altura Diamond lift meets all compliance requirements, including Machinery Directive 2006/42/EC, Reference standard: EN81-41
DRIVE SYSTEM Cogbelt and counterweight system driven by a gearless motor
RATE SPEED Europe: max. 0.15 m/s (2006/42/EC). Up to 0.4 m/s outside Europe, where permitted by local regulations.
TRAVEL HEIGHT 1100-18000 mm
NUMBER OF STOPS Max. 6 Stops Per Lift
DOORS Max 2 doors per floor, or 12 doors per lift
TYPE OF ACCESS Front, Lateral, Opposite or Adjacent
PIT REQUIREMENTS Metallic shaft - 140mm. If a pit is not possible, a ramp can be used.
Masonry shaft - 140 or 250 mm depending on configuration.
SHAFT TYPE Metallic structural shaft or masonry shaft
SHAFT TOP HEIGHT Structural Shaft: 2450 - 2630 mm
Masonry Shaft: 2350 - 2450 mm
CABIN TYPES Fully enclosed with sliding or folding doors

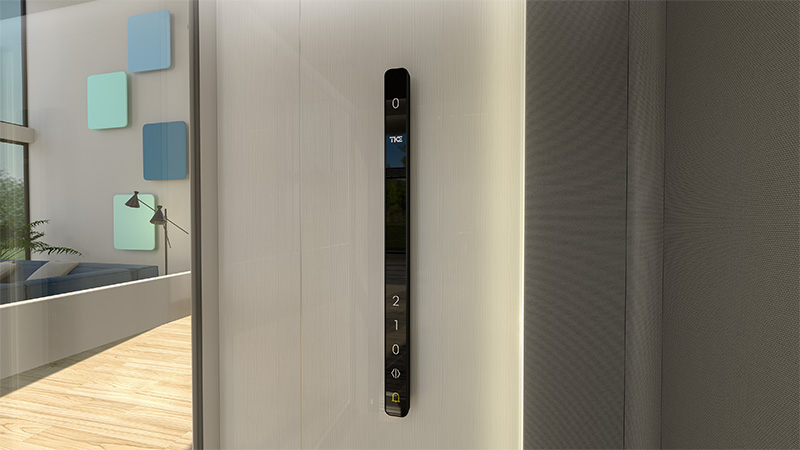

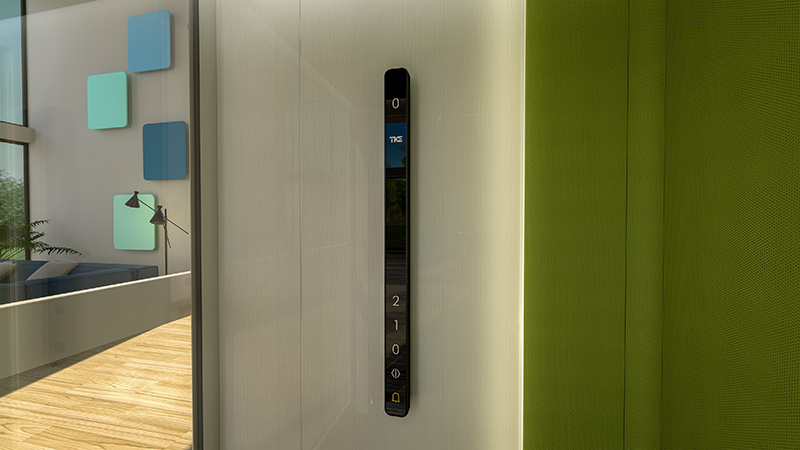

CONTROLS Automatic one-touch controls on cabin and landing. Call reservation on landings
APPLICATION Indoor or outdoor
EMERGENCY LOWERING Battery operated emergency lowering system with uninterruptable power supply (UPS)
POWER Power supply is 1-phase 230 V 50/60Hz 16 A. Control voltage of 24V. Maximum power: 2.8kW. Circuit breaker/RCD: 116A tripping curves C/ 30mA Class A or B
RATED LOAD Rated load of 250-400kg depending on cabin size

Options

Simplicity Style Options

  • Walls - Coloured film finish, stainless steel or painted in choice of colour.
  • Floor - Safety vinyl in choice of three colours
  • Mirror - Half-wall
  • Panoramic wall - Half or full-wall, in transparent glass
  • Lighting - Three LED spotlights
  • Control panel – Black
  • Handrail - Black or stainless steel



Deluxe Style Options

  • Walls  - Choice of high pressure laminates in different texture effects
  • Floor - Stone, carpet or vinyl flooring in a choice of colours
  • Mirror - Slim vertical, half-wall or full-wall
  • Panoramic wall – Half or full-wall, in transparent glass
  • Lighting - Choice of LED lighting configurations
  • Styling - Choose a cabin style from the Diamond Collection or design your own.
  • Accents - Contrasting corner and central panel accents.
  • Control Panel - Black, mirrored steel or gold
  • Handrail - Stainless steel or gold

Features and Benefits

Traction Lift The Altura Diamond is a unique traction lift perfect for residential and light commercial use.
Hotel-Style The Altura Diamond has all of the features of a hotel elevator, compacted into a home-friendly package
Smooth Travel With soft start-stop and exceptional ride quality, the Altura Diamond is one of the most
Plan Sizes A flexible range of plan sizes is available
Access Family The Altura Diamond lift is part of the Access BDD Altura family of lifts
Interior Get exclusive details and a customisable interior for the perfect lift for your home
Headroom With minimal headroom required, the Altura Diamond lift can be installed with ease
Energy Efficient The Altura Diamond is an energy-efficient lift, with minimal power consumption during operation

Dimensions

The Altura Diamond elevator is available in 8 pre-defined dimensions as listed below. However, due to the bespoke nature of the lift, you can also opt for a unique measurement according to your needs and desires. Get in touch to find out more.

FAQs

What Is A Traction Lift? - Traction elevators use a rope-and-pulley system to operate, with a steel rope attached to a counterweight which, when threaded through sheaves operated by an electric motor, raise and lower the elevator. They have lower power consumption than hydraulic lifts, but can be more expensive and require more head or pit room.

Can I Customise My Altura Diamond Traction Lift? - The Altura Diamond Traction Lift is fully customisable, from the cabin design to the colours, finishes and elevator shaft. Please get in touch to find out more.

How Much Will My Altura Diamond Lift Cost? The final cost of your Altura Diamond lift will ultimately depend on a number of factors, including the number of floors, the size, any customisation options or any work needed on the property to be able to complete installation. We will provide you with a bespoke, no obligation quote at the very beginning so you can be sure you are comfortable with the cost from the start.

How Safe Is The Altura Diamond Lift? The Altura Diamond traction lift utilises some of the best safety technology in the home lift market, not least including backup power in case of home-wide power loss, emergency brakes and more.

How Long Will Installation Of My Altura Diamond Lift Take? The total time it will take to install your Altura Diamond traction lift will ultimately differ according to a few key factors, including the height of the lift, any physical limitations (e.g. moving the pieces into the property) and any additional work that may need to be done to finish the job. We will give you a predicted time throughout the process, however it typically takes a few days.
