Pneumatic Vacuum Elevators

Vacuum Elevators
Vacuum Elevators
Vacuum Elevators

Pneumatic Vacuum Elevators

Luxury Range

Luxury PVE Vacuum Home Lifts

The PVE Pneumatic Vacuum Elevator is a stylish, sleek and luxurious accessibility and futureproofing solution for any home or building project. As one of the most sought-after and exclusive residential lifts available here at Morgan Ellis, we are proud to provide four different circular lift models including the PVE30, PVE 30 Eco, PVE37 and PVE52, each available in a vast range of customisable options to suit your home, style and needs and ensure that every member of the family has the best quality of life. Our PVE home vacuum elevators are an environmentally conscious but luxurious addition to any new or existing home, with quick and easy installation in as little as 1-2 days. With unique 100% 360-degree panoramic views, minimal maintenance and maximum safety, each of our PVE models require a small amount of floor space, no pit and run completely on the power of air, offering a quiet, eco-friendly accessibility solution for your home.

Futureproofing your home has never been more stylish. The glass circular shaft is sleek and compact self-supporting and can travel up to five floors (15 metres), encouraging reduced energy consumption and energy efficiency through the power of air and the use of recyclable materials. The PVE Vacuum range are also 100% compatible with smart home devices, allowing voice and mobile control, as well as a range of additional features for comfort and convenience including foldable chairs in the cabin, a remote control for lift automation, and more.

This sophisticated design is ideal for any use, whether you’re looking to futureproof your home, add accessibility or value, or simply want a talking point in your new build. The PVE30 can offer 1-person capacity, the PVE37 offers 2-person capacity and the PVE52 provides 3-person capacity or wheelchair access, making the PVE vacuum elevator ideal for any home renovation or construction project.

With prices for the PVE vacuum lift starting at £28,000, this is a luxury glass residential elevator sure to add value, class and style to any property.

Make an Enquiry Today

Reviews

"It was a pleasure working with Jeff and Matt! I was looking for a high end home lift, which not only would solve my need but also add value and a touch of design to my house. The lack of space was a problem, but on a first visit they were able to advise me on the best location and homelift for me, a PVE30 pneumatic vacuum elevator with a footprint of 30" diameter!! Thank you very much to all your team for the good treatment and professionalism."

Jesús (Google Review)

"Morgan Ellis Lifts are luxury, quality driven company with great attention to details. Their customer service along with the lead time on projects is impressive, will definitely be working with them again."

IQ Glass (Google Review)

"My new home lift looks amazing! These guys were super throughout the whole process. Would recommend to everyone :). Thanks!"

Aimee Ford (Google Review)

"An amazing lift and a quick install. Eveything went smoothly from stat to finish. A great service from Morgan Ellis."

Angela

PDF Brochures

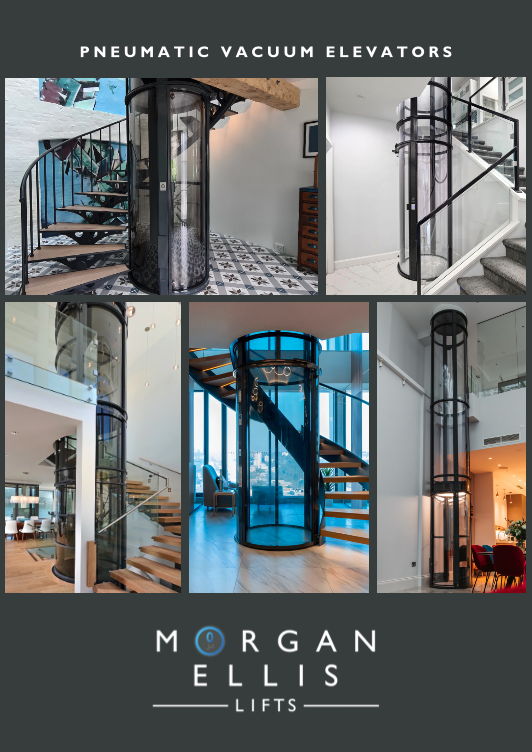

  • PVE Vacuum Elevator Brochure



  • Technical Specification PVE30

  • Technical Specifications PVE37

  • Technical Specifications PVE52

Tech & Safety

Travel Height PVE 30/37/52 - 15 metres (2-5 stops)
Travel Speed PVE 30/37/52 - 015m/per second
Capacity PVE 30 1 person (159kg).
PVE 37 2 person (205kg).
PVE 52 3 person/1 wheelchair (238kg).
Interior Cabin Diameter  PVE 30 - 638mm.
PVE 37 - 821mm.
PVE 52 - 1210mm.
Exterior Diameter PVE 30 - 750mm (800mm space required to install).
PVE 37 - 933mm (1000mm space required to install).
PVE 52 - 1316mm (1400mm space required to install)
European Standards

All our Pneumatic Vacuum Lifts comply with Europe's strictest safety requirements. It complies with the European Machine Directive 2006/42/EC by following the harmonised standard  EN81-41. It also has CE marking, which means it's a safe product in accordance with EC directives.

PVE lifts are also approved by the prestigious LIFTINSTITUUT, a leading European lift certification body.

Anchoring System

Each lift has an anchoring system for the cabin, ensuring a smooth and secure arrival at every floor in addition to brakes.

Communication Systems

Each lift is also equipped with a comprehensive communication system, with user-friendly button to allow passengers to call for help in case of an emergency.

Emergency Braking and Response

Every PVE lift comes with a braking system that is automatically activated in the case of an emergency, such as a fault or loss of vacuum for any reason. This brings the cabin to a safe stop. In the event of a power failure, the cabin will descend to the ground floor and the door can be mechanically unlocked.

Safety Sensors

Each lift is fitted with key sensor to ensure safe use of the lift. This includes an open door sensor to prevent cabin movement while the door is open, an electronic security sensor to prevent tampering, and an overweight sensor.

Doors and Locking

PVE lifts have semi-automatic doors on the destination floors, which are individually equipped with safety sensors. This will ensure that movement is stopped is there are obstacles in the opening or closing or doors. This includes preventing the door for closing if it encounters an obstacle.



Options

PVE Vacuum Lift Customisation Options

Features and Benefits

Colours

Standard: White, Navy Grey
Special: Taupe, Black and Light Grey

Lock The PVE vacuum elevator features a cabin key lock
Accessibility Foldable Car Seat available in PVE37 model.
Easy Installation No pit or machine room is required, meaning installation can take as little as 1-2 days.
Self Supporting The elevator shaft is self-supporting, meaning that you do not need an existing shaft or supports to install the PVE Vacuum lift. It can also free-stand in stairwells.
Eco-Friendly The PVE vacuum lift is eco-friendly, requiring minimal energy and powered by air.
Modern Design The 360-degree panoramic views and fully glass and metal elevator shaft make the PVE Pneumatic elevator one of the most modern on the market, fitting in perfectly in any modern home.
Maintenance Due to the nature of the lift, our vacuum lift requires minimal maintenance to continue ongoing smooth operation.
Voltage 220Volt Single Phase
Certification Machinery Directive 2006/42/EC Certified
Lighting All cabins come with LED lighting for safe use in dim or dark conditions
Ventilation Automatic ventilation included as standard for clean, breathable air
Head Formats You can choose between a head unit, or a split format depending on your needs, property layout and configuration choices.

Dimensions

FAQs

  • How does a Pneumatic Vacuum Lift work? The PVE Pneumatic Vacuum Lift is self-supporting and uses the power of air to both lift and lower the lift floor. Pumps and turbines will propel the lift up, while slow release of air will lower the cabin down to the ground. No hoists are required, and there are brakes and safety mechanisms included as standard to ensure optimum peace of mind while using the vacuum lift.
  • Where are PVE vacuum lifts made? PVE Lifts are based and manufactured in Miami, however, we work directly with their Madrid based office to ensure optimum communication at all times.
  • What is the manufacturing time of a PVE lift? The average manufacture time is 12-14 weeks, though this may differ depending on production schedules.
  • Does the PVE Vacuum home lift require a pit? The lift does not need a pit or any machine room. The lift will be installed directly onto the floor of your home.
  • How long does it take to install? The PVE vacuum lift has quick, easy and mess-free installation, with a 1-2 day installation time.
  • Are PVE Vacuum Lifts eco-friendly? The PVE vacuum lift utilises the power of air to lift you and lower you between floors, offering one of the most eco-friendly lifts available on the market. It is energy efficient and requires minimal power for operation.
  • How much does a PVE lift cost? The cost of your PVE vacuum lift will differ according to a number of factors, including how many floors it will span, any features you've chosen, and the model that suits your home and needs best. We will provide you with a free quote so you can have a clear idea of what to expect from the final cost.
  • Is there a waiting list for the PVE home lift? The wait time for your PVE lift will ultimately differ depending on demand at the time. As this can change regularly, we are happy to provide you with an approximate wait time, if any, when you first speak to us about your brand new home lift.
